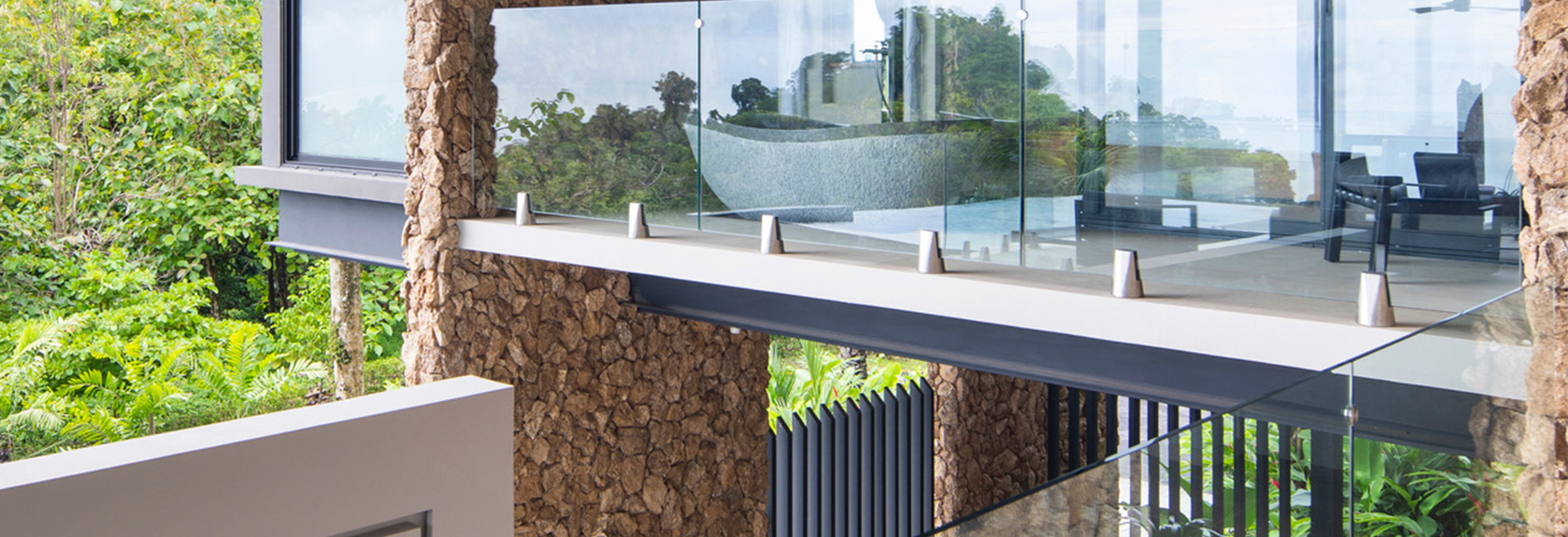

Glass railing clamp system that combines design, safety and fast installation
The GlassFit CC-780 system from Comenza is a glass railing solution with stainless steel clamps designed for a minimalist and elegant look. It incorporates the Level 3D device, which compensates irregularities in the slab while maintaining a clean aesthetic look.
The system has been developed to simplify the installation process and improve on-site efficiency. Thanks to its leveling devices, it is possible to adjust the final position of the clamp on the floor, with the glass resting in its final position.
01. OPTIMIZED DESIGN
The GlassFit CC-780 system stands out for its design, where every element has been optimized to offer a visually clean and technically precise solution. The floor clamp acts as a discreet element, providing a refined finish that is consistent with the project's architecture. This approach allows the railing to be integrated as a functional element without disrupting the overall aesthetic.
02. HIGH SAFETY STANDARDS
Guaranteed safety of the client, complying with all technical requirements of a legal and regulatory nature. We test our systems in our laboratory according to international standards and accredited certifiers.
03. EASY INSTALLATION
In line with our commitment to ensuring simple, fast and cost-effective installations, the new GlassFit CC-780 system incorporates the Slot 180 and Level 3D levelling devices, which allow perfect alignment with the glass already installed.
Advantages
01. ADJUSTMENT DEVICES INCORPORATED
The design of the CC-780 clamp for glass railings has been optimized to provide installers with easy access to all adjustment points. It also allows for simple glass adjustment. Once the glass is positioned on the clamp, it can be moved laterally with ease over the supporting components, allowing it to be placed in the desired final position thanks to the curved surface of the rigid plastic parts. The system is suitable for glass panels with a thickness ranging from 12.76 to 17.52 mm and a length of up to 1200 mm.
Additionally, the clamp incorporates the SLOT 180 device, which compensates for deviations in the drilled hole from its intended installation position by up to ±3.25 mm in the direction of the applied load. It also features the three-point LEVEL 3D levelling device, which allows adjustment along the X, Y and Z axes. Each adjustment point provides up to 5 mm of regulation, enabling the system to compensate for slab irregularities of up to 5 mm. Thanks to this adjustment capability, the railing can be installed perfectly vertical on floors with slopes of up to ±7.5% (4.3°).).
02. GUARANTEED SAFETY
Designed according to the different Technical Building Codes for use in private spaces such as homes, hotel balconies and residential flats or as a pool enclosure. Load test of 0.8 kN certified by Applus.
03. MINIMALIST DESIGN
The CC-780 system stands out for its distinctive design, featuring a compact clamp that places the full transparency of the railing at the forefront, aligned with contemporary architectural trends
Safety and regulation standards
At Comenza, we have a fundamental commitment to the users of our railing systems. As a result, our engineering department focuses on the development of railing systems that comply with the most demanding international building codes, guaranteeing the utmost level of safety for the users of all our systems, anywhere in the world.
