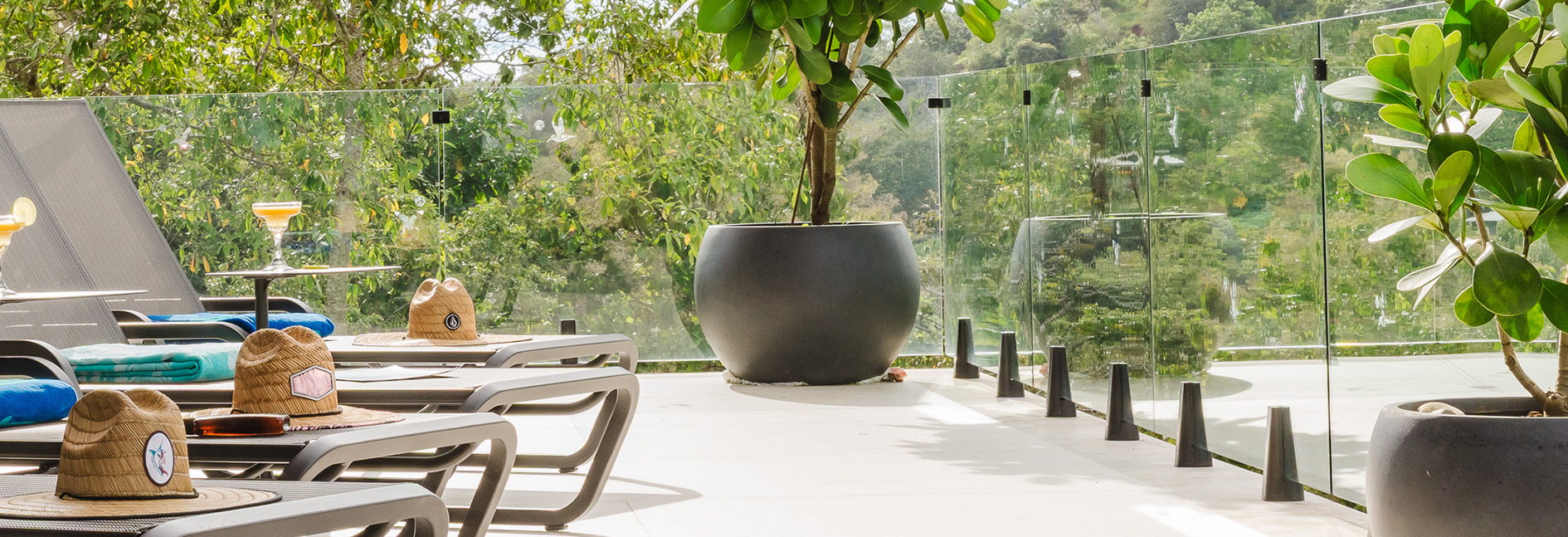

Glass railing clamp system for private-use projects
The GlassFit CC-801 clamp system for glass railings stands out for its minimalist design, easy installation and resistance. It's available in AISI 316 stainless steel with either a polished or satin finish, and Black Finish.
Despite its compact dimensions, the CC-801 clamp provides an exceptional sense of rigidity and solidity. The system can be installed with glass panel lengths of up to 1,300 mm, making it a cost-effective solution specifically suited for private-use projects.
01. MINIMALISTIC DESIGN
Its minimalist aesthetic gives any project a modern appearance. The system allows the installation of glass with thicknesses ranging from 12.38 mm to 17.52 mm, depending on the glazing kit used. It also can be installed with curved glass.
In addition, the shape of the base has been optimized to provide proper support for the adjustment devices and ensure correct performance of the central anchor.
02. Safety
The GlassFit CC-801 railing system has been tested to ensure reliable performance under horizontal loads. Its performance has been verified through laboratory testing, providing professionals with greater confidence and ensuring safety for all users.
03. EASY INSTALLATION WITH INTEGRATED DEVICES
The CC-801 clamp for glass railings is one of the most rigid and resistant top-mounted anchoring systems on the market. Its integrated levelling devices simplify installation and help reduce assembly time.
Advantages
01. COST OPTIMIZATION FOR PROJECTS
The system configuration allows for larger glass panel sizes, reducing the number of clamps required for installation. This material optimization helps lower the overall system cost, particularly in residential projects. In addition, using fewer components helps speed up installation and improve on-site efficiency.
02. AVAILABLE IN BLACK FINISH
The GlassFit CC-801 railing in Black Finish features a black PVD coating applied to the stainless steel product using a Physical Vapour Deposition (PVD) process. This treatment provides high resistance to factors such as UV exposure, corrosion, detergents, solvents and pollution.
03. EASY GLASS ADJUSTMENT AND SUITABLE FOR CURVED GLASS RAILINGS
The clamp design allows the glass to be moved laterally with ease, making it simple to position it correctly. The clamp can then be adjusted and permanently fixed to the slab while the glass remains supported in its final installation position.
The GlassFit CC-801 system can be installed with curved glass using a glazing kit specifically developed for this type of application, expanding the possibilities for architectural design. This solution facilitates integration into curved façades while maintaining the system’s performance and ensuring a quality result.
04. AXIS LEVELLING DEVICE: LEVEL 3D
The LEVEL 3D levelling device allows the clamp supports to be adjusted to ensure the railing remains perfectly vertical on floors with slopes of up to ±6.6% (3.8°). It also compensates for and absorbs slab irregularities of up to 5 mm.
05. DEVICE FOR CORRECTING DRILLING DEVIATIONS: SLOT 180
The SLOT 180 device, located at the base of the clamp, facilitates installation even when the centre of each anchor hole has deviated by up to ±3 mm (6 mm total adjustment range) from its intended installation position.
Safety and regulation standards
At Comenza, we have a fundamental commitment to the users of our railing systems. As a result, our engineering department focuses on the development of railing systems that comply with the most demanding international building codes, guaranteeing the utmost level of safety for the users of all our systems, anywhere in the world.
